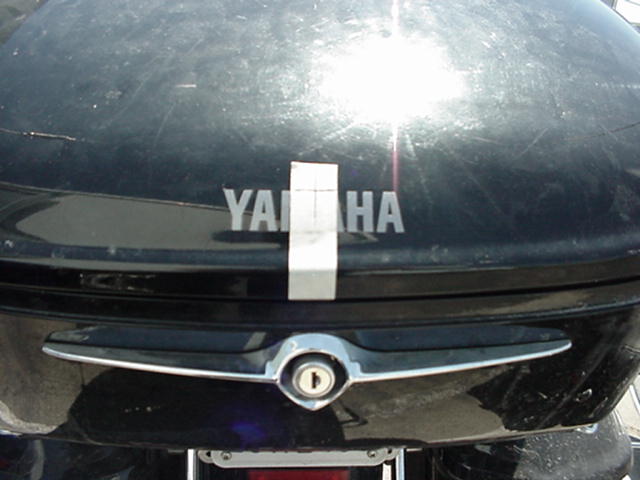

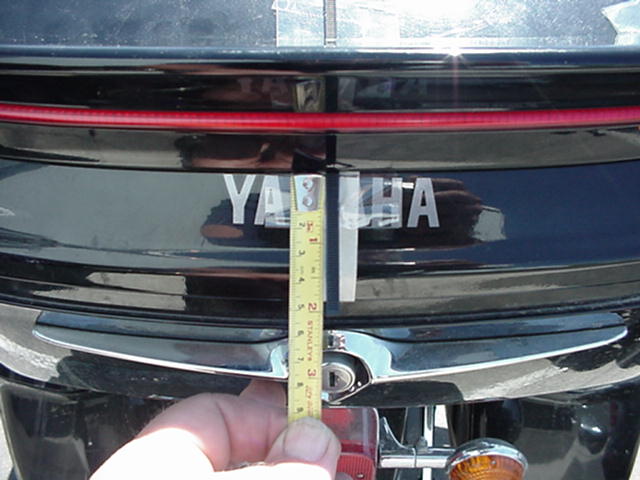

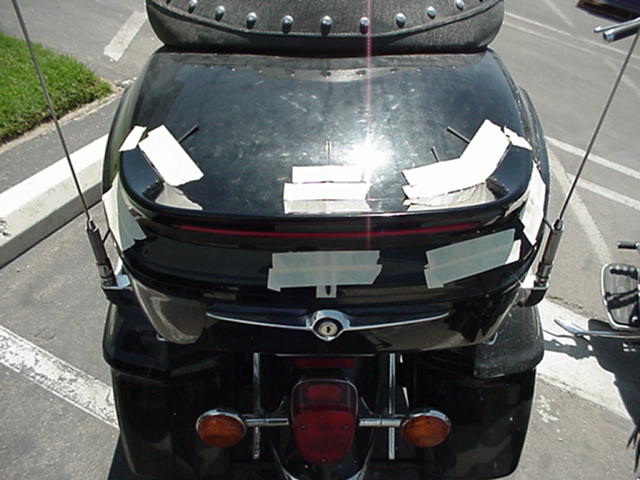

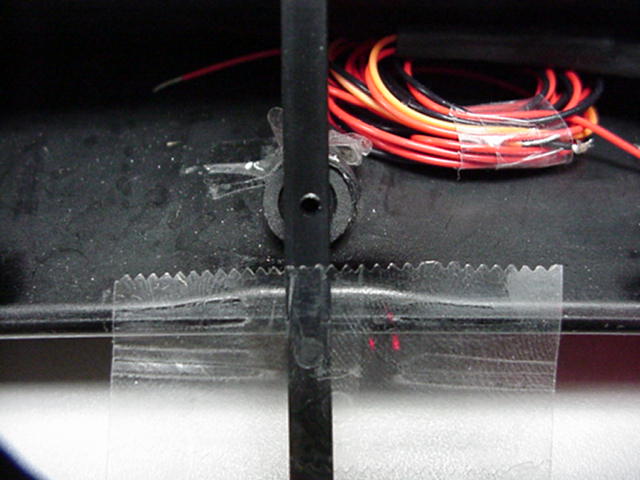

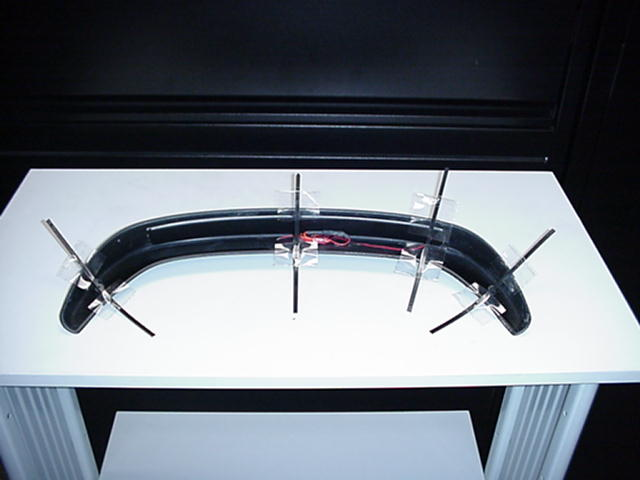

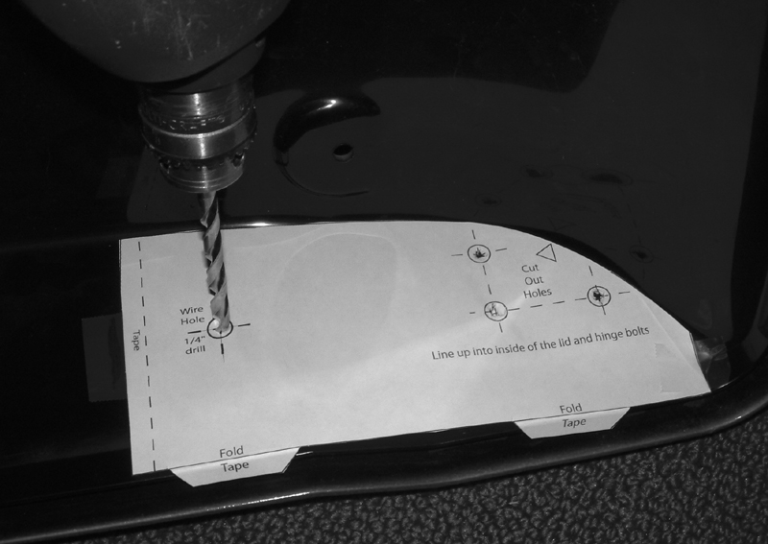

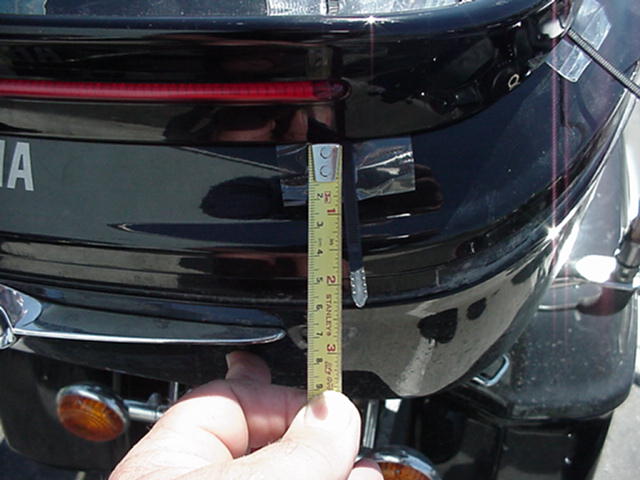

Freebird Posted August 22, 2006 Share #1 Posted August 22, 2006 http://www.venturerider.org/spoiler/image002.jpg INSTALLATION INSTRUCTIONS Trunk Lid Spoiler w/ Light STR-4XY62-03-XX Royal Star Venture (XVZ1300TF) http://www.venturerider.org/spoiler/image004.jpg Please read and understand these instructions completely before installation to avoid injury to your self or damage to the motorcycle or accessory, Dealer: These instructions contain important information for future reference and must be given to the customer. 1.Parts List: Item Part Name Part Number Description Qty 1 Spoiler W/ Light Molded ABS 1 2 Wire Guide 24” rubber “D” extrusion 1 3 Screws Phillips head self tapping screws 3 4 Flat Washer Steel 3 5 Rubber Washer Rubber 3 6 Drill Guide Plastic Strip 4 7 Drill Template Paper 1 http://www.venturerider.org/spoiler/image006.jpg Fig 1 http://www.venturerider.org/spoiler/image008.jpg Fig 2 http://www.venturerider.org/spoiler/image010.jpg Fig 3 http://www.venturerider.org/spoiler/image012.jpg Fig 4 http://www.venturerider.org/spoiler/image014.jpg Fig 5 http://www.venturerider.org/spoiler/image016.jpg Fig 6 2. Preparation: a) Clean trunk lid thoroughly 3. Installation: a) Place spoiler upside down on workbench use a towel or soft cloth to protect paint. b) Center hole in drill guide with mounting stand off and attach to spoiler with a small piece of tape (fig. 1). Repeat for the remaining 2 mounting stand offs. Locate 4th drill guide under end of light with hole centered on spoiler (fig. 2). This will be used for wire routing. c) Mark the centerline of the lid with of masking tape using latch button as center (fig. 3). d) Center spoiler on trunk lid with back edge just above “Yamaha” logo approximately 2-1/4” from the bottom edge of the trunk lid (fig.4). Using a tape measure level the spoiler on trunk lid by measuring fro the bottom edge of the spoiler to the trunk lid edge at each end of the LED light. These measurements should be equal (fig.5). e) Using masking tape, tape the 4 drill guides to the trunk lid (fig 6). Double check location. f) Gently remove spoiler from trunk lid leaving drill guides in place on lid. g) Using 1/16” drill bit and drill guides carefully drill 4 pilot holes through the drill guides into the trunk lid. Remove drill guides and enlarge holes using 1/4” drill bit. Carefully debur holes. h) Feed the three light wires through the wire routing hole and attach spoiler to lid using self-tapping screws (#3), flat washer (#4) and rubber washer (#5). Tighten securely being careful not to overtighten. NOTE: DO NOT USE LOCKTITE ON MOUNTING HARDWARE. i) Remove passenger backrest, rider and passenger seats and set aside. Cut out drill template (#7) and tape it to the inside of the trunk lid as shown. Carefully drill pilot hole using 1/16” drill bit. Remove template and enlarge hole using 1/4” drill bit. Carefully debur hole. http://www.venturerider.org/spoiler/spoile1.gif Fig #7 j) using a piece of stiff wire (like welding rod) pull light wires through wire guide (#2). Clean inside of trunk lid using isopropyl alcohol. Remove backing from wire guide and adhere guide to inside of trunk lid along path to wire exit hole drilled in step J. k) Route wires through exit hole. Loosen face panel on front panel and carefully route wires behind panel. Tighten panel and replace passenger backrest. l) Dress wires along fender under seat to taillight/Turnsignal connector near battery box. Strip 3/8” from wire ends. m) Unplug the Taillight/Turnsignal Connector. The TRUNK SPOILER LIGHT WIRES will inserted into the “female” Taillight/Turnsignal Connector (fig 8) following the “wire color code below. http://www.venturerider.org/spoiler/image027.jpgRed Orange Black http://www.venturerider.org/spoiler/image025.gif Yellow Blue Black a) Reconnect Taillight/Turnsignal Connector being careful not to dislodge or “short” the wires to one another. Check operation of lights. b) Install seat. 4. Maintenance: Periodically check all fasteners for tightness and re-torque as required. 5. Care and Cleaning: See your Owners Manual 6. Customer Service: For further information see your Yamaha dealer. July 2003 PAK-4XY63-00-XX Link to comment Share on other sites More sharing options...

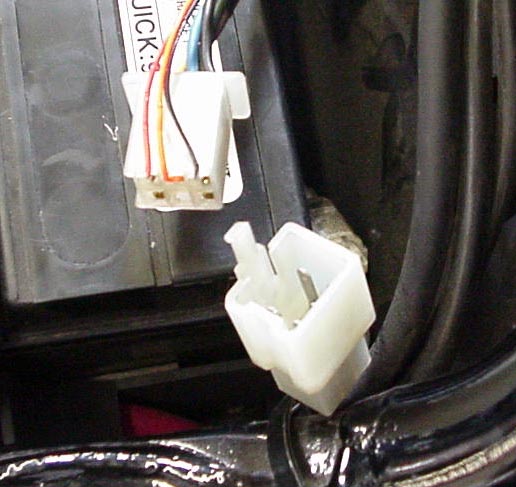

Freebird Posted July 25, 2019 Author Share #2 Posted July 25, 2019 instruction sheet that comes with the wing light from Yamaha is incorrect. Instructions say Red from wing to Yellow on bike, Orange from wing to Blue on bike, Black to Black. Correct instructions should be Red from wing to Blue on bike, Orange from wing to Yellow on bike, Black to Black. Link to comment Share on other sites More sharing options...
